Equipped with a long 720 mm table, a wide range of accessories, a powerful electrospindle and the EasyGrind multifunction software developed by SMP Technik, the CA5 EvoBoost is perfect for manufacturing all your small and medium size tools.

Horizontal work

5 axis

Linear motor

Technical characteristics

Machine dimensions

Overall dimensions (L x w x h) = 2900 mm x 3150 mm x 2200 mm

Overall dimensions with robot (L x w x h) = 2900 mm x 2150 mm x 2200 mm

Total weight = 6500 kg

Tool capacity

Maximum tool length (grinding)= 500 mm

Maximum tool length (sharpening)= over 500 mm

Maximum tool diameter = 250 to 300 mm

Maximum tool weight (between centers) = 100 kg

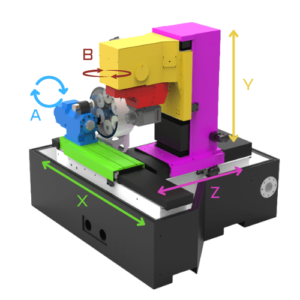

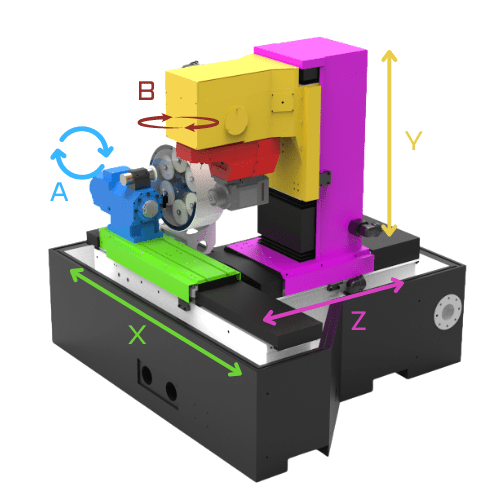

Axes strokes

X axis stroke (horizontal) = 500 mm

Y axis stroke (vertical) = 290 mm

Z axis stroke (perpendicular) = 300 mm

A axis stroke (clamping tool) = limitless

B axis stroke (electrospindle holder) = -25 / +180 deg

Axes speed

X axis speed (horizontal) = 30 m/min

Y axis speed (vertical) = 15 m/min

Z axis speed (perpendicular) = 15 m/min

A axis speed clamping tool) = 720 rpm

B axis speed (electrospindle holder) = 15 rpm


X, Y and Z axes = 0.0001 mm

A and B axes = 0.0001 deg


Maximum wheel diameter = 300 mm

Maximum wheel diameter inside changer= 150 mm

Wheel chuck = HSK50

Grinding wheel stations = 6 or 10 wheels

Grinding wheel stations with robot = 14 wheels


Electrospindle power = 22.5 KW (S1)

Max electrospindle speed = 24000 rpm

Tools changer (with robot)

Max capacity = 225 tools (10 mm diameter)

Max diameter = 32 mm

max length = 120 mm


Appui d'outil escamotable

Fix pneumatic steady rest

Lunette à suivre

CNC following steady rest

Changeur de meule avec arrosage intégré

Wheel changer with integrated cooling nozzles

Contre pointe

Tail stock

Profilage de meule par molette à diamanter

Automatic grinding wheel profiling unit

Profilage de meule par diamant

Automatic grinding wheel with diamond

Example tools

Video presentation of the CA5

CA5 documentation to download
