Rigidity, universality, speed and precision of execution are the striking characteristics of the VG400 LINEAR.
The vertical machining position provides the operator with ergonomics and real comfort of use and ensures perfect machining precision.
Vertical work

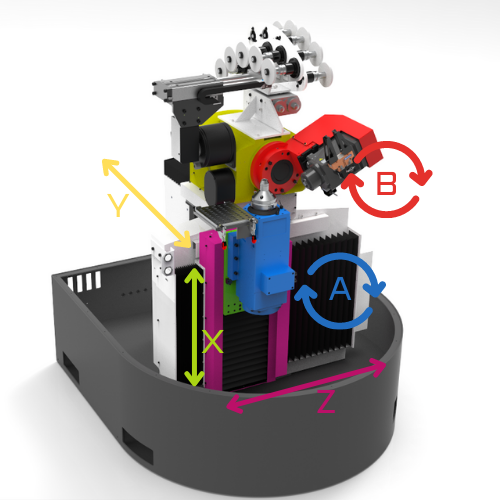

5 axis
Technical characteristics
Machine dimensions
Overall dimensions (L x w x h) = 2500 mm x 1600 mm x 2400 mm
Total weight = 3500 kg
Tool capacity
Maximum tool length (grinding) = 300 mm
Maximum tool length (sharpening) = 900 mm
Maximum tool diameter = 150 mm
Maximum tool weight = 25 kg
Axes strokes
X axis stroke (vertical) = 360 mm
Y axis stroke (perpendicular) = 300 mm
Z axis stroke (horizontal) = 200 mm
A axis stroke (clamping tool) = limitless
B axis stroke (electrospindle holder) = -30 / +180 deg
Axes speed
X axis speed (vertical) = 16 m/min
Y axis speed (perpendicular) = 15 m/min
Z axis speed (horizontal) = 16 m/min
A axis speed (clamping tool) = 720 rpm
B axis speed (electrospindle holder) = 10 rpm
Resolution
X, Y and Z axes = 0.0001 mm
A and B axes = 0.0001 deg
Wheel
Maximum wheel diameter = 200 mm
Wheel chuck = HSK50 / HSK63
Automatic changer capacity = 6 or 10 wheels
Electrospindle
Electrospindle power = 15 KW (S1)
Max electrospindle speed = 24000 rpm
Tool Changer
Without robot :
Capacity = 48 tools
Max diameter = 20 mm
Max length = 130 mm
With Robot :
Capacity = 120 tools
Max diameter = 32 mm
Max length = 500 mm
Options
10 station grinding wheel changer
Special additional cooling system for deep grinding
Wheel Probe
Steady rest
Tool changer with machine axes
