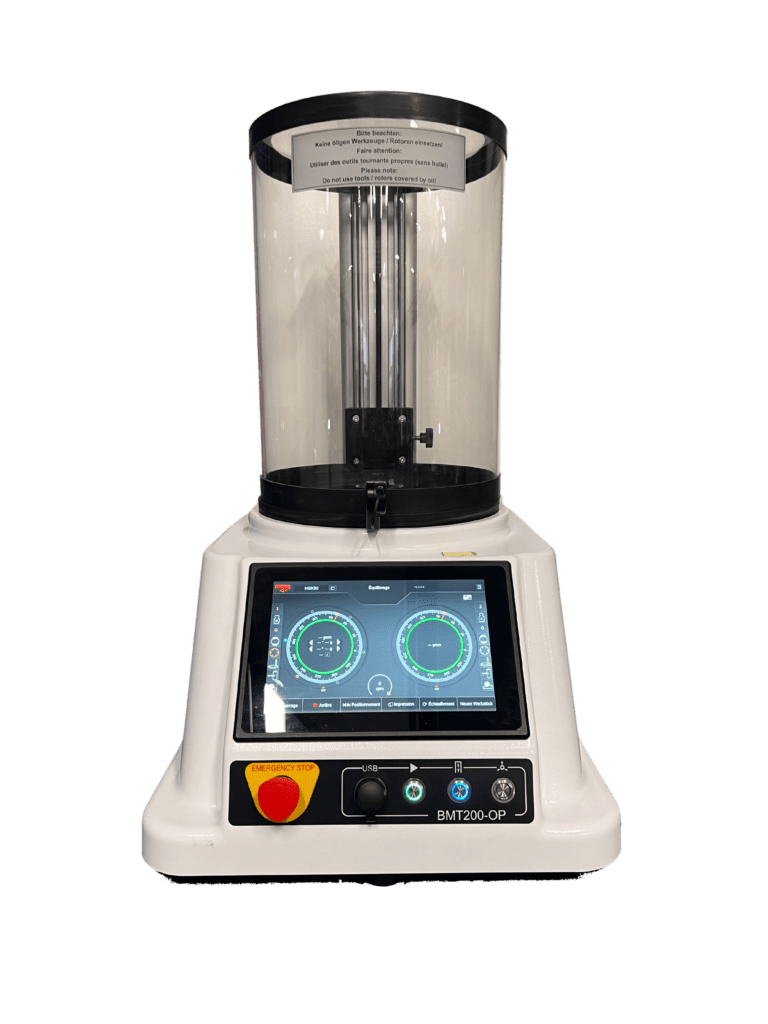

Precision in HighTech precision within a small space!
Balancing helps to minimize vibrations and, consequently, the wear of spindles and tools, reducing downtime and increasing the overall reliability of the entire process.
Protect your machine spindles and optimize your machining by effortlessly balancing your cutting tools and workpieces in both static and dynamic modes.
For parts of all sizes.

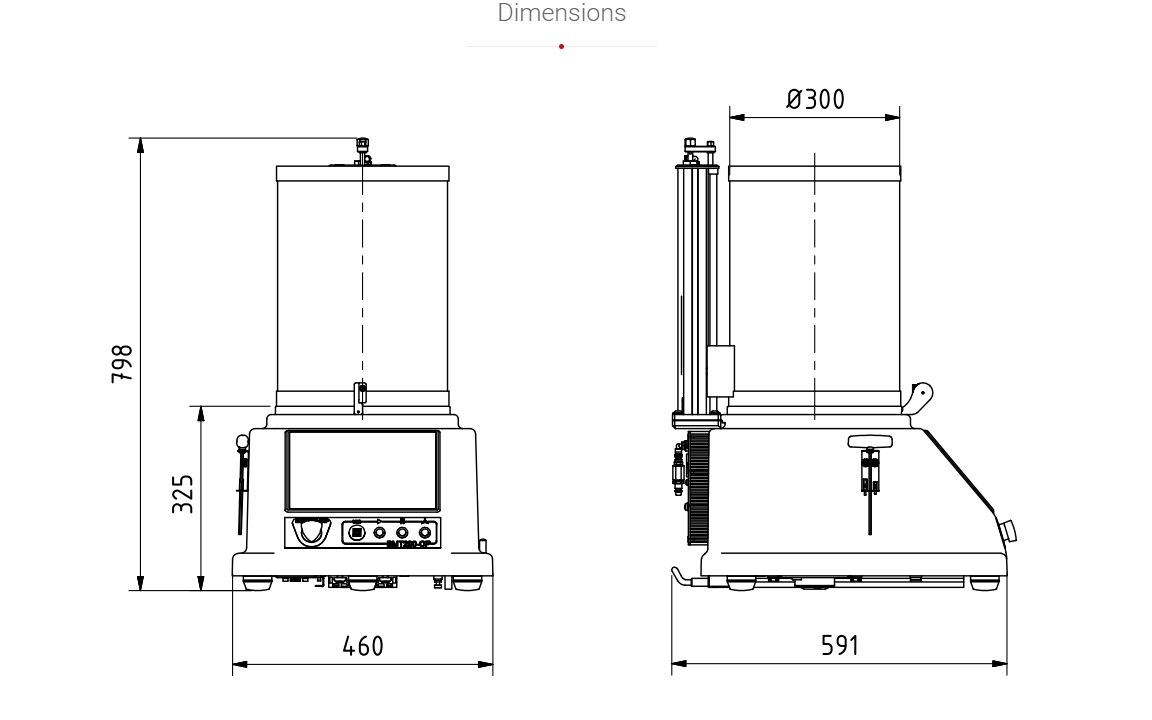

Dimensions
Poids seulement env. 50kg
Poste de travail complet pour équilibrer sur une surface de 500mm x 500mm
Capot de protection jusqu’à Ø 400mm

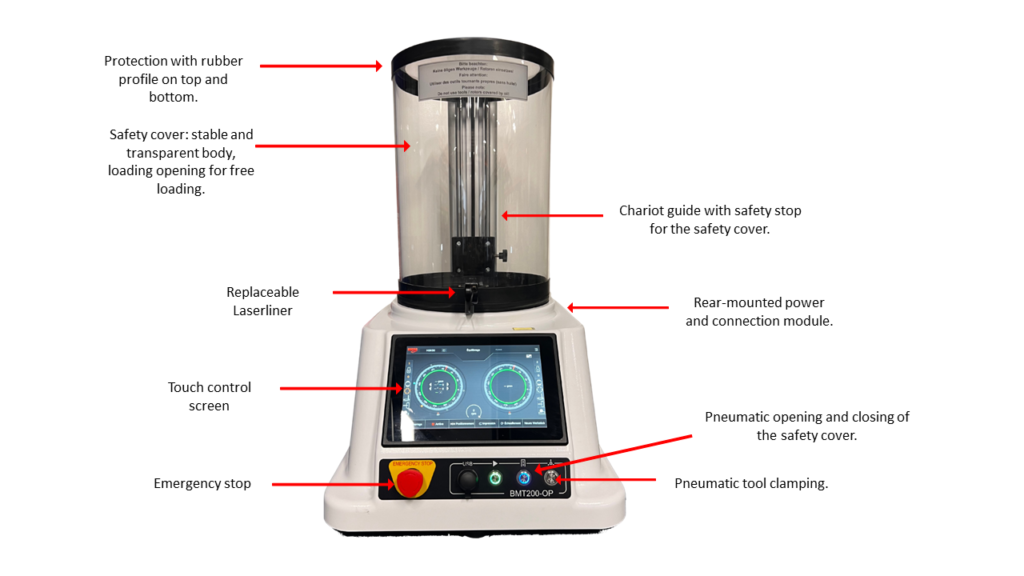

Composition
Balancing Technology
Balancing helps minimize vibrations, thereby reducing wear on spindles and tools, cutting downtime, and enhancing the overall reliability of the entire process.

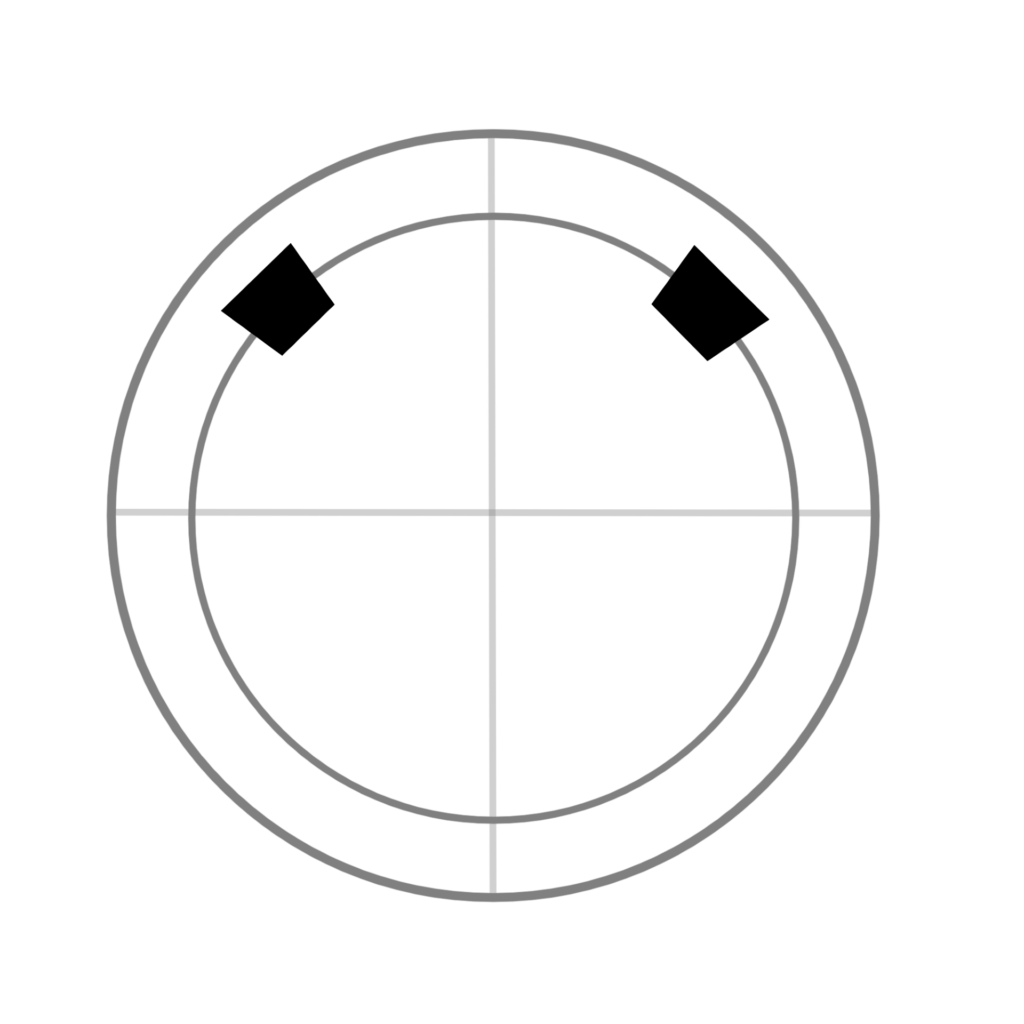

Angular indication for counterweight.

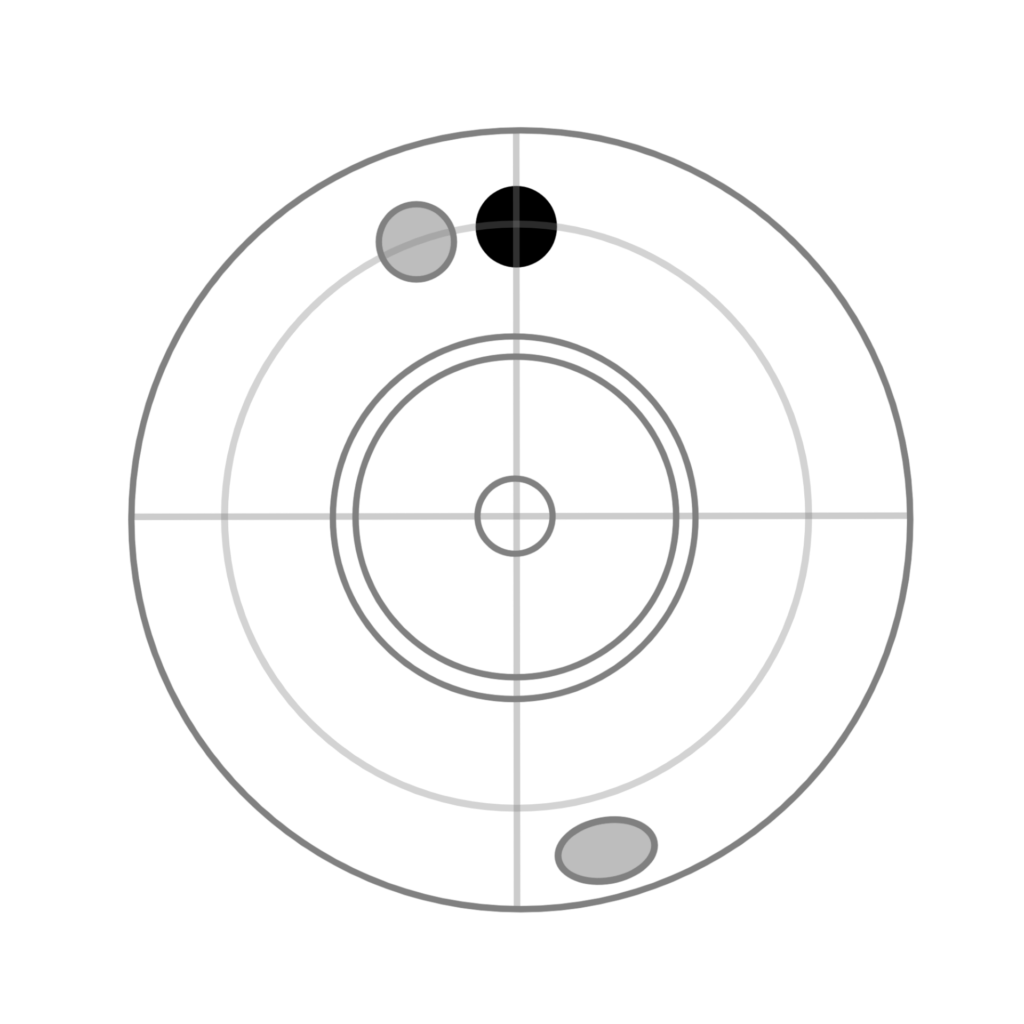

By material addition.

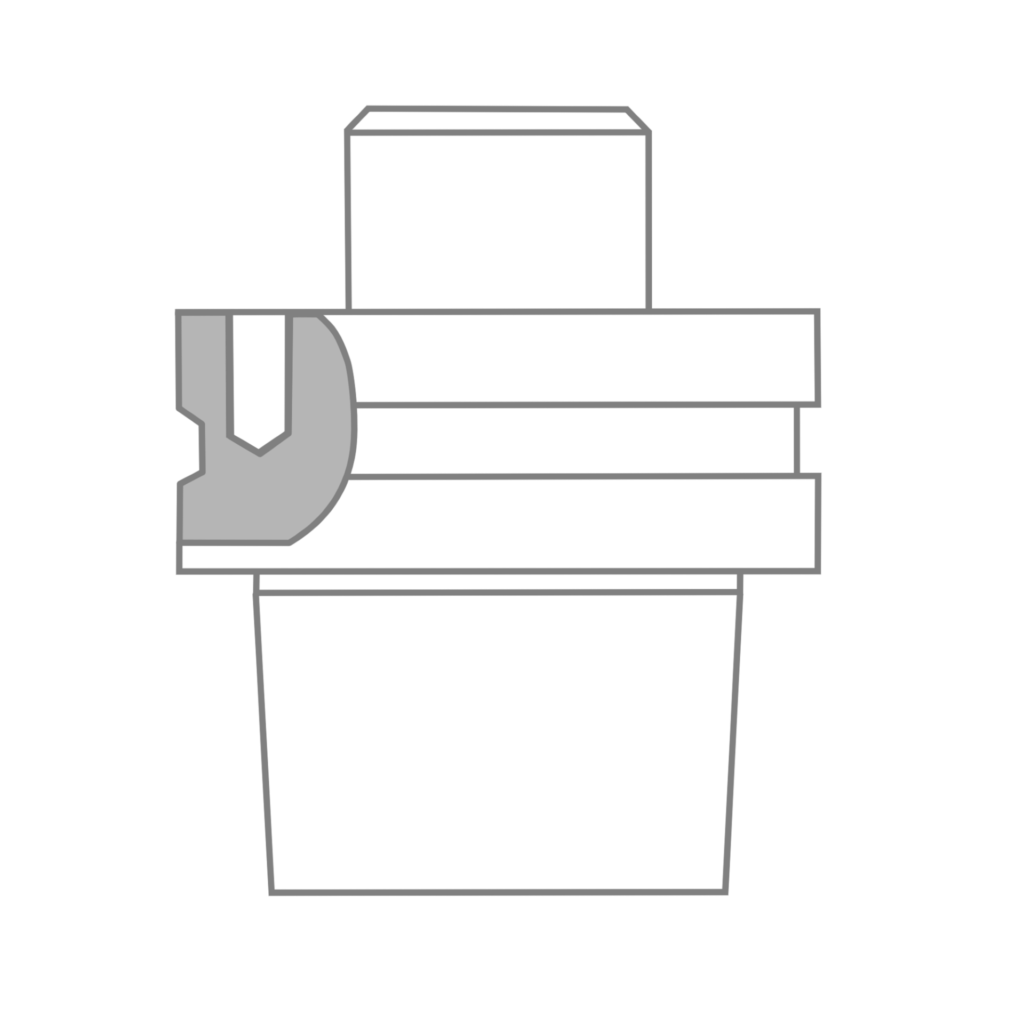

Axial drilling.

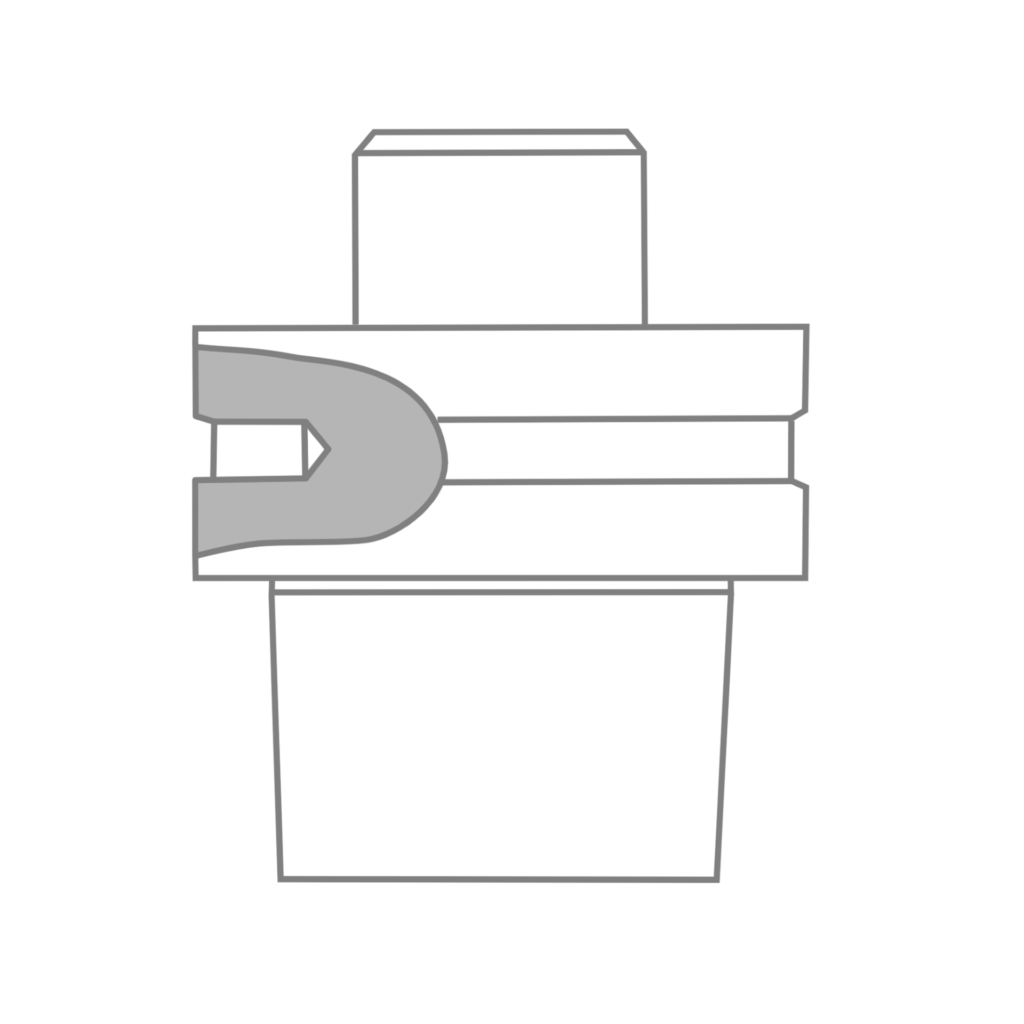

Radial drilling.

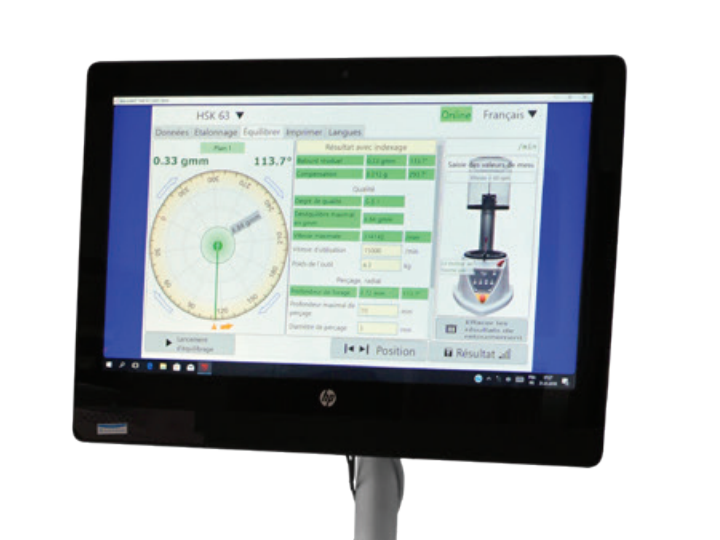

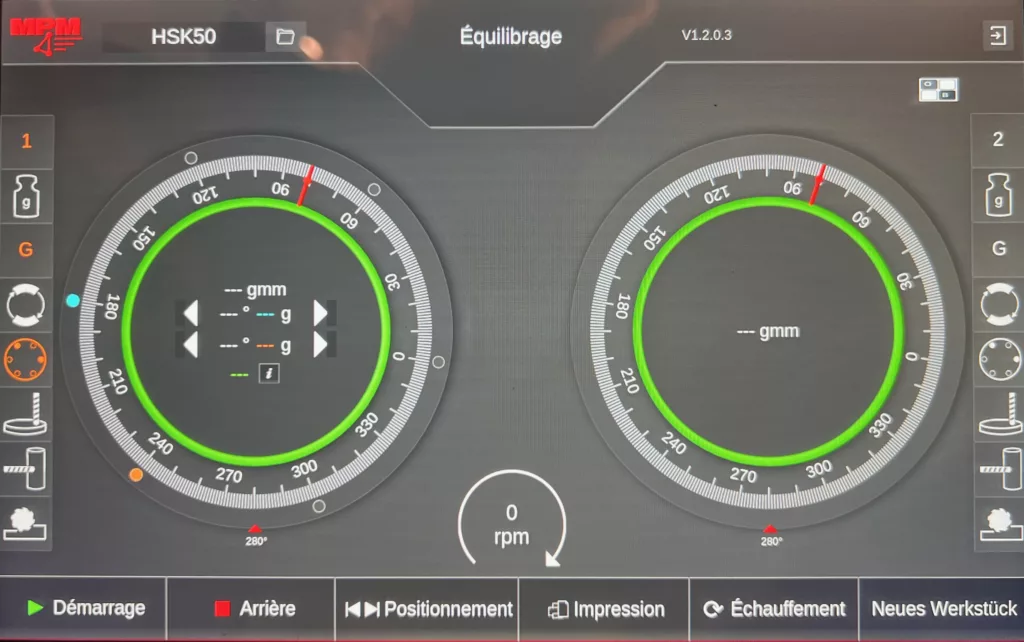

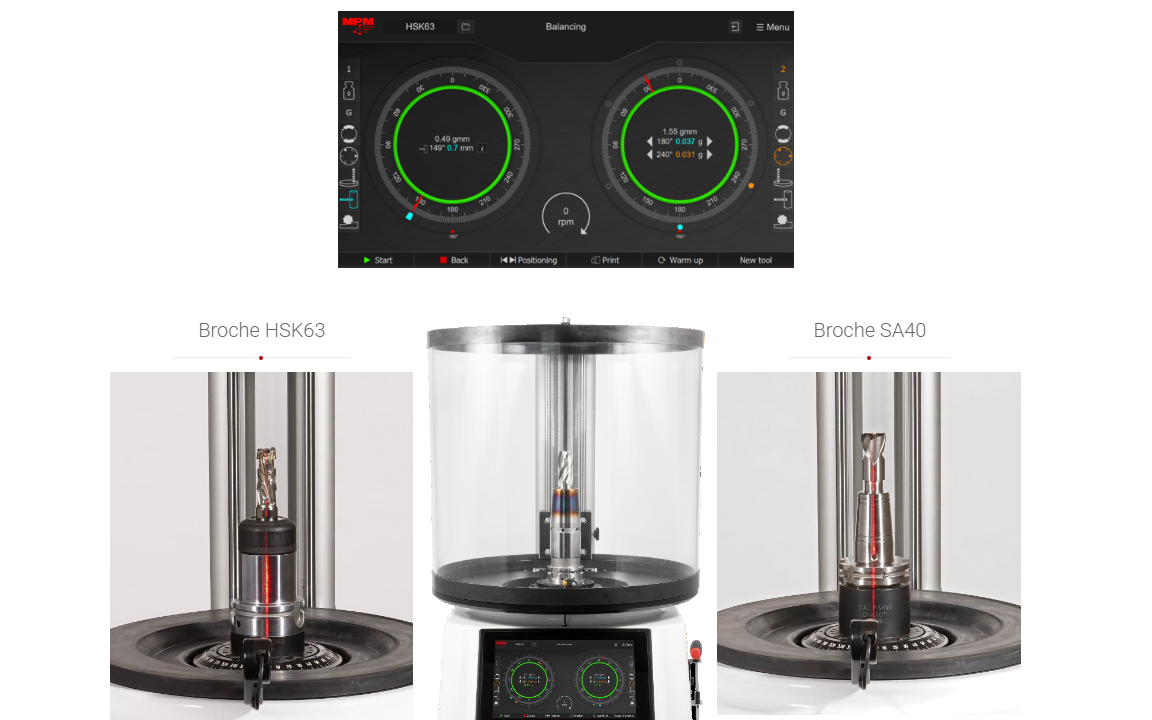

Simple and convenient display
- Different types of integrated balancing methods
- Display of unbalance in gr/mm, gr, or DIN quality class.
- Color display indicating whether the rotor unbalance is within tolerance or not.
- Indication of the maximum possible rotation speed on the machine spindle.
- Laser pointing display of unbalance value and angle.
- Various language options.
- Dropdown menu.
- 10-inch touchscreen display or PC/tablet/notebook.
- Clear and dialogue-guided operation!
Software
- Compensation distributed at different locations
- Compensation zone definition

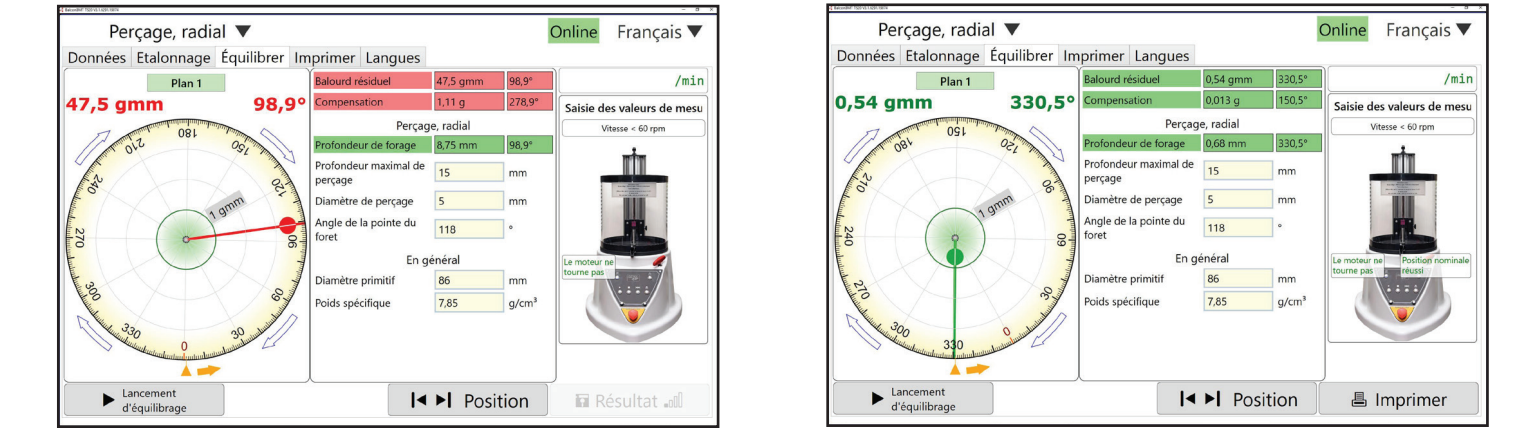

- Radial drilling
- Axial drilling
- Milling
- Report printing
- Report memory function
Balancing method
- Measurement of unbalance in grams (gr/mm)
- Balancing quality G according to DIN 1940 standard
- Balancing rings with eccentricities
- Material addition (screws) at a fixed position
- Material removal by radial or axial drilling, milling, or grinding
- Gram, degree, separation angle
- Fixed position
- Radial + axial drilling, milling
- 1 or 2 balancing planes
- Maximum balancing precision < 0.5 gmm
- Laser pointing
- Balancing by flipping
- Static 1-plane balancing
- Balancing with spindle compensation
- Multi-languages
- Automatic spindle positioning
- Alternative compensation positions
- Transfer of balancing measurement results
- Transfer of measured values for gram, degree, separation angle

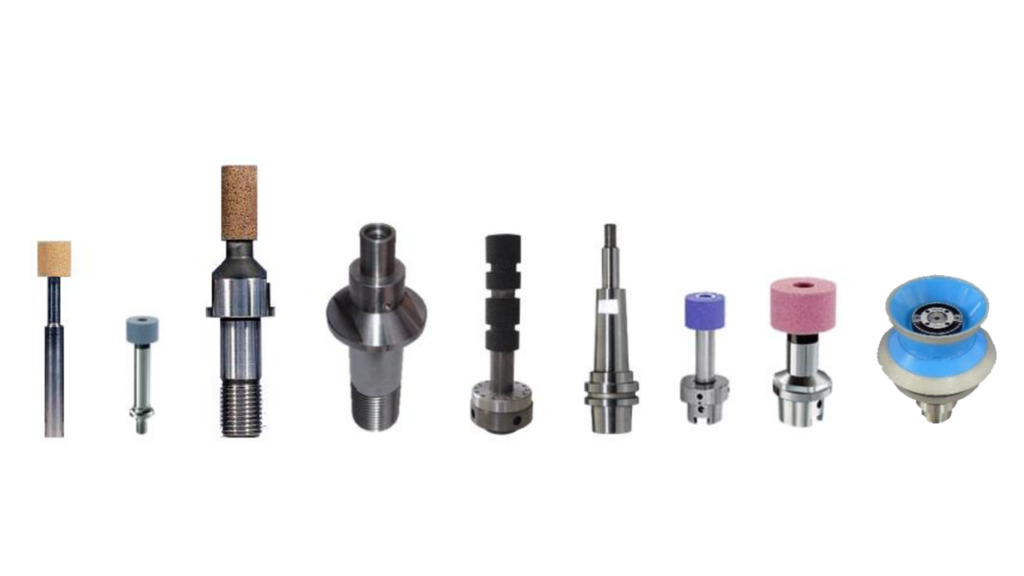

Tool/Workpiece Capacity
Piece Length: Up to 400mm
Piece Weight: Up to a maximum of 10kg
Piece Diameter: Up to 270mm
Technical Specifications
Smallest imbalances (<0.1 gram) detectable.
Highest precision (<0.5 gmm).
Improved ease of use > 90%.
Options
Touchscreen or PC
Larger safety cover

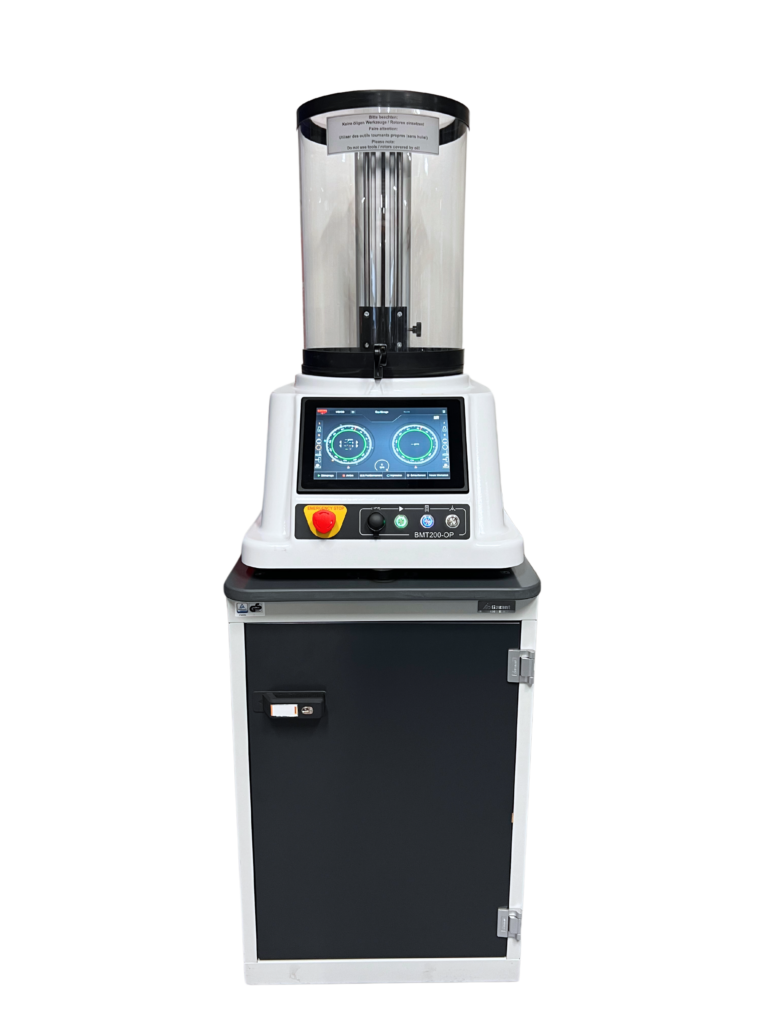

Workbench support with drawer
Formation
Balancing 1 + 2 plane dynamic

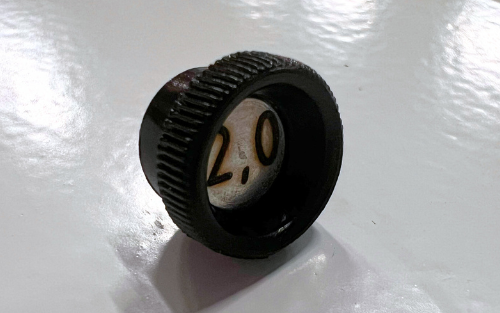

Test magnet

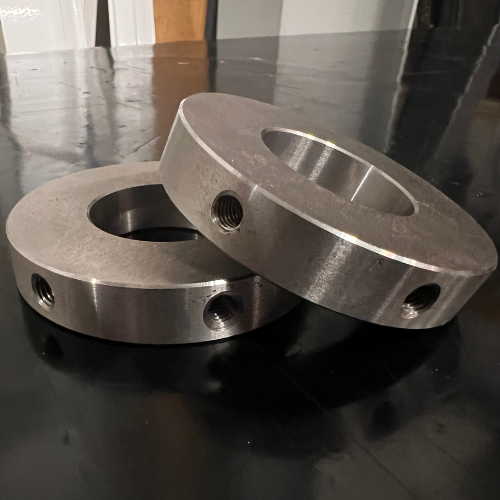

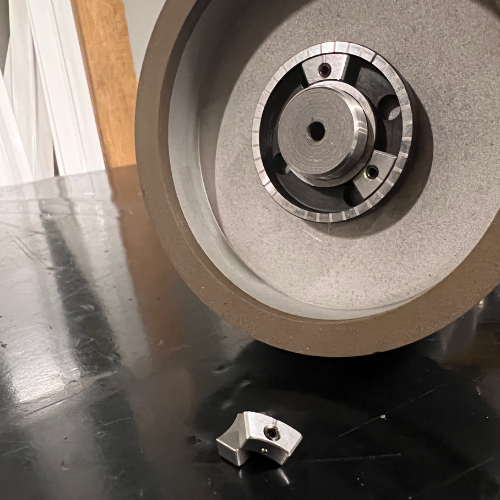

Balancing rings

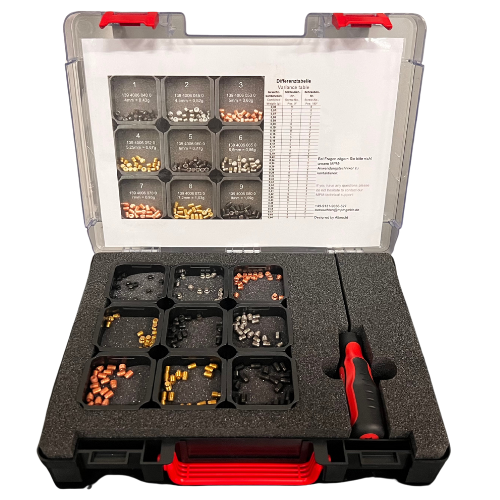

Balancing screw kit
Available with your company logo

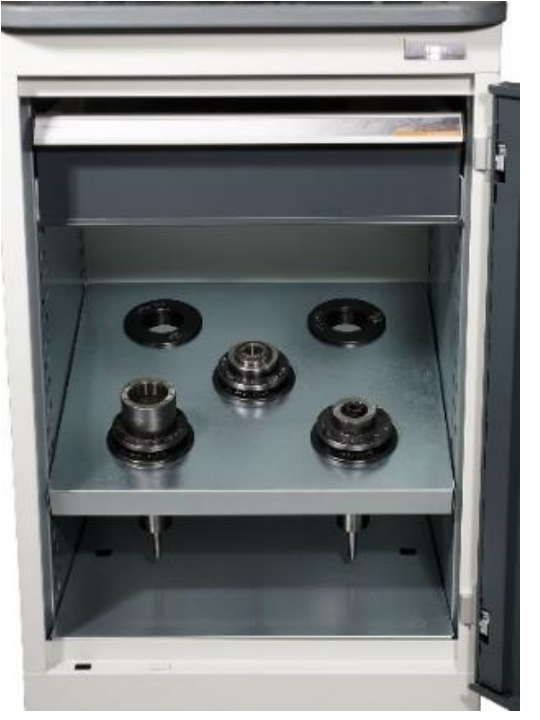

Storage worktable

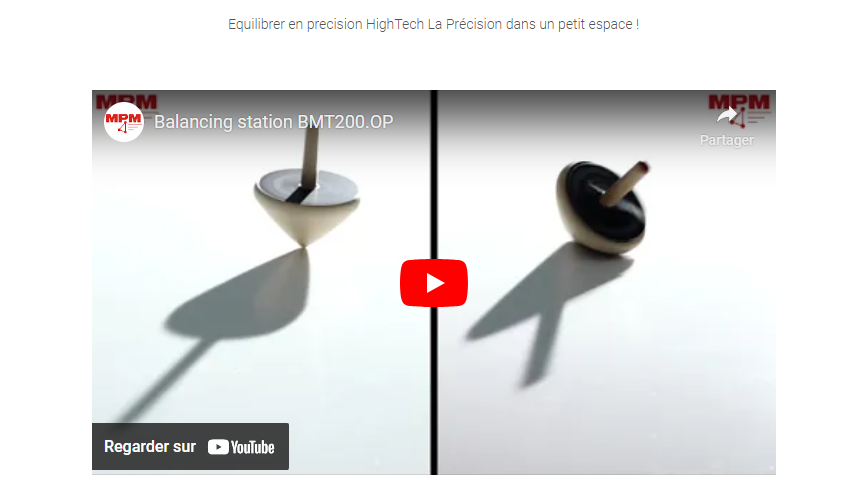

Demo video
